Inmode Aesthetics Inmode RF Votiva with 2 Handpieces
Input Power
Main Line Frequency (nominal) 50-60 Hz
Input Voltage (nominal) 100-240 VAC
Input Current(rms) 2A
Operating Parameters
Ambient Temperature Range 15 – 30 degrees C[59 – 86 degrees F]
Relative Humidity 30% to 80%, non-condensing
Atmospheric Pressure 90-110 kPa
Warm-up Time If transported or stored at room temperatures outside the operating temperature range, allow one hour for the device to reach room temperature before use.
Transport and Storage
Ambient Temperature Range -20 – 65 degrees C[-4 – 149 degrees F]
Relative Humidity 0% to 80%, non-condensing
Atmospheric Pressure 50 to 110 kPa
Dimensions Inmode Aesthetics Inmode RF Votiva with 2 Handpieces
System 35cm W x 35cm D x 100cm H [18.2″ W x 18.2″ D x 40″ H]
Handpiece cable 250 CM L [100″ L]
Weight
System 35cm W x 35cm D x 100cm H [18.2″ W x 18.2″ D x 40″ H]
FormaV Applicator 0.22 Kg [0.5 lbs.]
FractoraV Applicator 0.22 Kg [0.55 lbs.]
RF Maximum Output energy 40[energy levels]
RF Frequency 1[MHz] or – 2%
FormaV Vaginal Treatment Zone 10-20 cm2
RF Energy Level 20-30
Cut-Off Temperature As High as Tolerable Starting at 40 Degrees Celsius
Gel Thick Layer
Additional “Add-On” Applicator Available
FRACTORA
24 Pin Type – Full Thickness Dermal; Configuration – 6×4; Pin Length – 3000u; Ablation Depth – 3 mm; Heating Depth – Between 3-5 mm; Max Output Energy 62 mj/pin; Output Frequency – 1 MHz; Repetition Rate – Up to 2 pps
24 Pin Coated Type – Deep and Subdermal; Configuration – 6 x 4 Coated; Pin Length – 3000 u, Ablation Depth – 3 plus mm; Heating Depth – Between 3-5 mm; Max Output Energy 62 mj/pin; Output Frequency – 1 MHz; Repetition Rate – Up to 2 pps
60 Pin Type – Mid Dermal; Configuration – 10×6; Pin Length – 600u; Ablation Depth – 0.6-1 mm; Heating Depth – Between 3-5mm; Max Output Energy 62 mj/pin; Output Frequency – 1 MHz; Repetition Rate – Up to 2 pps

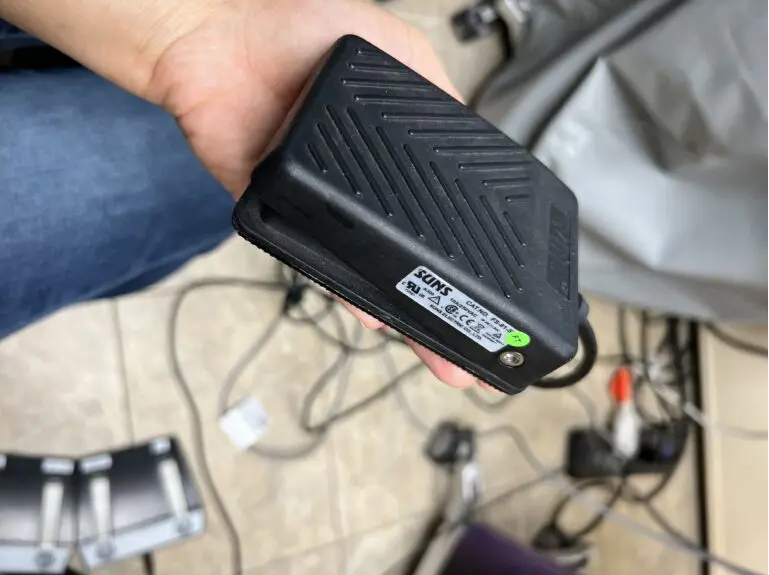

2017 Inmode Aesthetics Inmode RF Votiva with Plus90 (Vaginal) & Fractora (microneedling) Handpieces; Manufactured 12/24/2017; Excellent Operating & Cosmetic Condition; Reason for Selling: Downsizing; Handpieces Included: Plus90 & Fractora; Also Includes: Footswitch, Operators Manual, Quick Reference Guides & 120 Day Warranty.
